Tofu60 2.0

The Tofu60 2.0 is an upgraded 60% mechanical keyboard kit from KBDfans, designed for customizability and ease of assembly. Released as a follow-up to the popular original model, it features an anodized aluminum case, various plate materials, and hot-swap or solder PCBs that support QMK firmware with VIA compatibility. This kit offers three mounting styles—Top Mount, Gasket Mount, and Silicone Bowl Gasket—providing versatile typing experiences, and is available in multiple colors thanks to a new surface coating process. Priced at $109, the kit includes essential components such as a daughterboard, brass weight, and silicone accessories, while additional upgrades can be purchased separately.

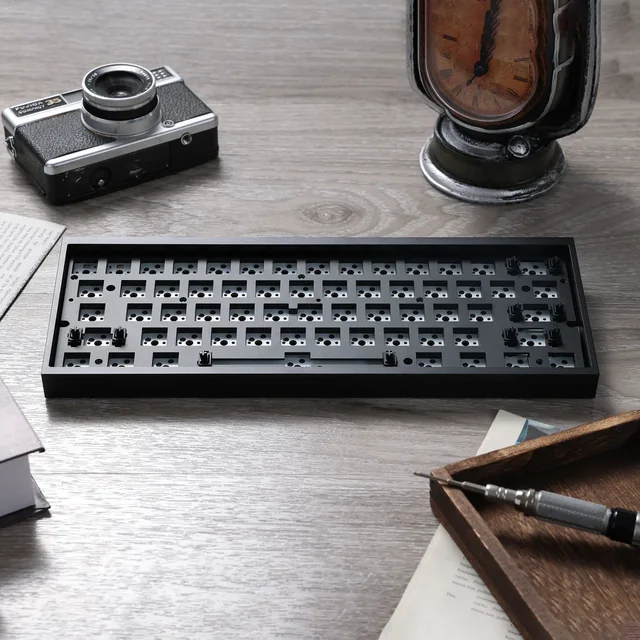

Tofu60 Redux 60% Mechanical Keyboard Case Kit

Color (without brass weight bar)

Plate

Anodized Silver / Aluminum Black / 60% RGB ANSI Hotswap PCB

Anodized Silver / PC / 60% RGB ANSI Hotswap PCB

Anodized Gray / Aluminum Black / 60% RGB ANSI Hotswap PCB

Anodized Gray / PC / 60% RGB ANSI Hotswap PCB

E-coating White / Aluminum Black / 60% RGB ANSI Hotswap PCB

E-coating White / PC / 60% RGB ANSI Hotswap PCB

Anodized Black / Aluminum Black / 60% RGB ANSI Hotswap PCB

Anodized Black / PC / 60% RGB ANSI Hotswap PCB

Anodized Dark Blue / Aluminum Black / 60% RGB ANSI Hotswap PCB

Anodized Dark Blue / PC / 60% RGB ANSI Hotswap PCB

E-coating Orange / Aluminum Black / 60% RGB ANSI Hotswap PCB

E-coating Orange / PC / 60% RGB ANSI Hotswap PCB

E-coating Purple / Aluminum Black / 60% RGB ANSI Hotswap PCB

E-coating Purple / PC / 60% RGB ANSI Hotswap PCB

Anodized Green / Aluminum Black / 60% RGB ANSI Hotswap PCB

Anodized Green / PC / 60% RGB ANSI Hotswap PCB

Acrylic / Aluminum Black / 60% RGB ANSI Hotswap PCB

Acrylic / PC / 60% RGB ANSI Hotswap PCB

New Anodized Mocha / Aluminum Black / 60% RGB ANSI Hotswap PCB

New Anodized Mocha / PC / 60% RGB ANSI Hotswap PCB

New ※ E-coating Red / Aluminum Black / 60% RGB ANSI Hotswap PCB

New ※ E-coating Red / PC / 60% RGB ANSI Hotswap PCB

New ※ E-coating Meteorite Gray / Aluminum Black / 60% RGB ANSI Hotswap PCB

New ※ E-coating Meteorite Gray / PC / 60% RGB ANSI Hotswap PCB

New ※ E-coating White / Aluminum Black / 60% RGB ANSI Hotswap PCB

New ※ E-coating White / PC / 60% RGB ANSI Hotswap PCB

Anodized Maroon / Aluminum Black / 60% RGB ANSI Hotswap PCB

Anodized Maroon / PC / 60% RGB ANSI Hotswap PCB

New Anodized Dark Purple / Aluminum Black / 60% RGB ANSI Hotswap PCB

New Anodized Dark Purple / PC / 60% RGB ANSI Hotswap PCB

E-coating Pink / Aluminum Black / 60% RGB ANSI Hotswap PCB

E-coating Pink / PC / 60% RGB ANSI Hotswap PCB

E-coating Baby Blue / Aluminum Black / 60% RGB ANSI Hotswap PCB

E-coating Baby Blue / PC / 60% RGB ANSI Hotswap PCB

E-coating Azure / Aluminum Black / 60% RGB ANSI Hotswap PCB

E-coating Azure / PC / 60% RGB ANSI Hotswap PCB

E-coating Light Pink / Aluminum Black / 60% RGB ANSI Hotswap PCB

E-coating Light Pink / PC / 60% RGB ANSI Hotswap PCB

Specs Case: Anodized Aluminum, E-coating Aluminum or Acrylic Structure: Tray-mount PCB: 1.6 mm non-flex cut hotswap PCB with RGB underglow and per-key RGB. USB-C, supports VIA Weight: approximately 1 kg (non-brass weight bar) approximately 1.3 kg (with brass weight bar) Plate: Aluminum Black/Polycarbonate Typing angle: 7 degree Link to Tofu60 Redux case Comparison with Tofu60 1.0 Sandblasted brass weight is added internal, the weight is increased Replace the round rubber feet with long strip rubber feet Two detachable golden stand-offs located in the middle and bottom of the case interior To tackle the issue with USB port placement, the USB port has been redesigned. It is now a movable sider to accommodate Standard GH60 PCB's and Wooting 60 HE's port alignment. Its functionality allows for USB port to aligned correctly for fit various implementations. Note: The $5 discount code (LOVEKBDFANS) is not valid for the Tofu60 Redux. 3D preview Firmware VIA firmware: ydkb_kbdfans_redux60rgb_ansi_vial.uf2 Json file: ydkb_kbdfans_redux60rgb_ansi_via.json Disclaimer 1. Keyboard case - If you see any resemblance of marks or foreign material under 2 mm (tool marks, stain, dent, sand mark, scratch, etc.), you're not eligible for Return & Refund. 2. Brass weight - If you see any resemblance of marks or foreign material under 2 mm (tool marks, stain, dent, sand mark, scratch, etc.), you're not eligible for Return & Refund. 3. Case interior - Based on the production method of anodizing and spraying, the product can lead to some smearing at the surface level, and you'll see some hook marks within the case. Also, the spraying process can not guarantee that the color will look 100% the same on the internal case corners. The color off on the interior case and the interior corners are not eligible for Return & Refund. 4. About the potential coating defects: Because the Faraday cage exists for this type of production method, it's going to be hard to coat the Interior corners perfectly. Insead of kill all the smoothness on the case coating, the interior painting job won't be as perfect as the exterior's. Attention: -Make sure to QC your keyboard case and weight before building it. For any issues besides the three above, please get in touch with our customer support agents to get help. -For anything built is not eligible for Return & Refund. Click for more Include Case (with USB blocker) x1 Plate x1 hotswap PCB x1 Foam kit x1 Long strip rubber feet x1 set Screws x1 set Cherry stablizers x1 set Cable x1 Optional accessories Brass weight bar x1 (+$25 USD) Update Pre-order will ship around end of May 1.6 mm non-flex cut hotswap PCB Support RGB underglow and per-key RGB Non flex-cut Aluminum Black/PC plate PCB Foam and case foam Layout Dimension

Tofu60 Redux kit

Specification	Tofu60 2.0	Tofu60 Redux kit
Starting Price	$39.00	$111.00
In Stock	No	Yes
Layout	60%	60%
Hotswappable	Yes	Yes
Fully Prebuilt	No	No
Switch Count	61 switches	null switches
